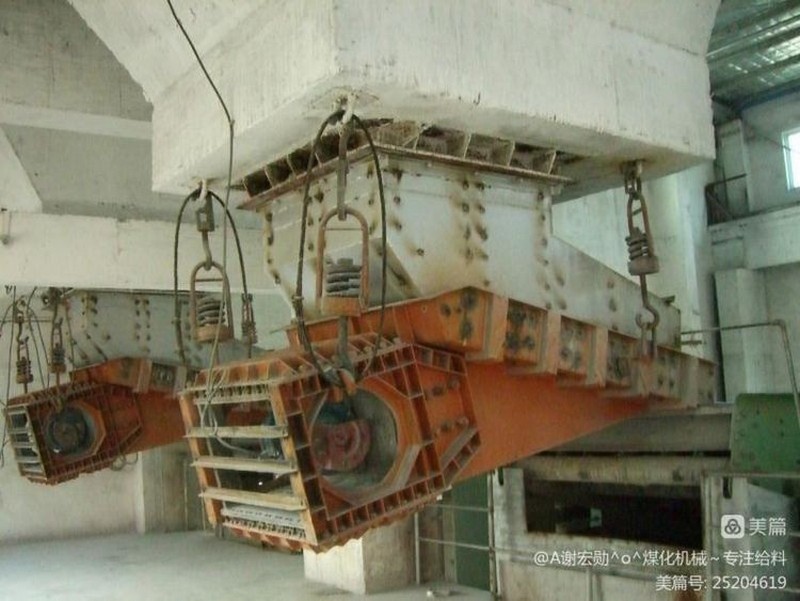

Recently, Zijin Mining has requested our company to use rubber ceramic linings for its vibratory drawers in many domestic key projects and Serbia projects. I think it is necessary to introduce the advantages and characteristics of rubber ceramic linings used as linings.

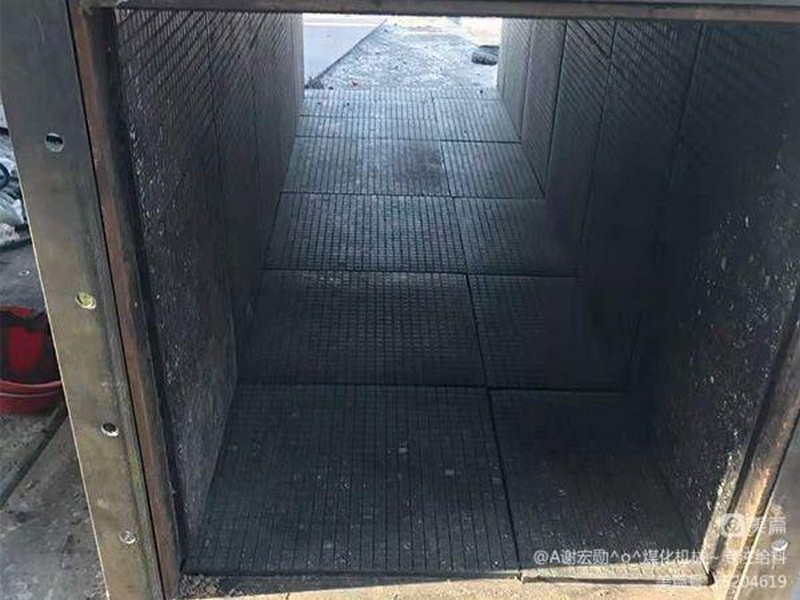

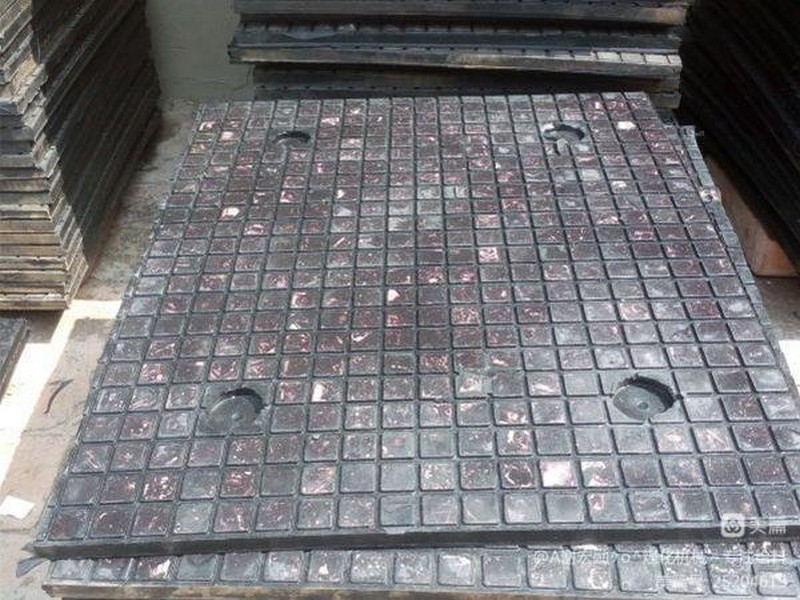

The wear-resistant ceramic lining plate should be a composite structural material made of ceramic, rubber and steel plate as a whole, with an overall thickness of 35mm; the surface of the ceramic column with high hardness and high wear resistance; the middle cushion rubber wraps the ceramic column in it, There should be sufficient buffering. The three should be vulcanized together as a whole, firm and reliable. The upper ceramic block is made of aluminum oxide with a content of 92%, and the height of the ceramic block is 20mm and the diameter is 20mm. The ceramic density is 3.60g/cm3; Vickers hardness 1000; Rockwell hardness 80; flexural strength 270; compressive strength 1450; fracture toughness 3-4. The middle part is made of rubber with a thickness of 10mm. The rubber is a special high wear-resistant rubber with a hardness of 62Shore-A, a tensile strength of 23Mpa, an elongation at break of 550%, a tear strength of 17 N/mm, a rebound of 45%, and a wear of 110 mm3. The shortest distance between ceramic blocks and ceramic blocks and between ceramic blocks and edge rubber filling shall not exceed 6mm. The back is Q235 steel plate with a thickness of 5mm, and the welding stud is made of carbon steel and galvanized; it must be rust-proof and corrosion-proof. The installation method adopts special stud welding machine for welding. The general wear-resistant ceramic lining plate of all equipment in the system should be as uniform as possible, with a basic size of 400*400*35mm, and the wear-resistant plate is installed with staggered seams, with a maximum installation gap of 5mm.
Features
1. Wear resistance: alumina corundum ceramics, the hardness is above HRA85, and the wear resistance is 271.5 times that of manganese steel;
2. Impact resistance: The toughened ceramic formula ensures that the ceramic is not easily broken, and the unique spherical design and high-quality buffer layer can resist the impact of large materials;
3. High temperature resistance: can run at 0℃-250℃ for a long time;
4. Acid and alkali resistance: The rubber adopts a new formula of acid and alkali resistance rubber, which can resist weak acid and weak alkali;
5. Anti-dropping: The ceramic rubber steel plate is vulcanized in one piece, and the combination is very firm; each piece of ceramic has a penetrating bolt that passes through the bottom steel plate and is firmly welded, with double insurance;
6. Easy installation and replacement: It is provided by a whole lining board, which is convenient for replacement and installation and reduces after-sales service;
7. Reduce maintenance: The super wear resistance greatly reduces the frequency of maintenance, saving costs and labor.
