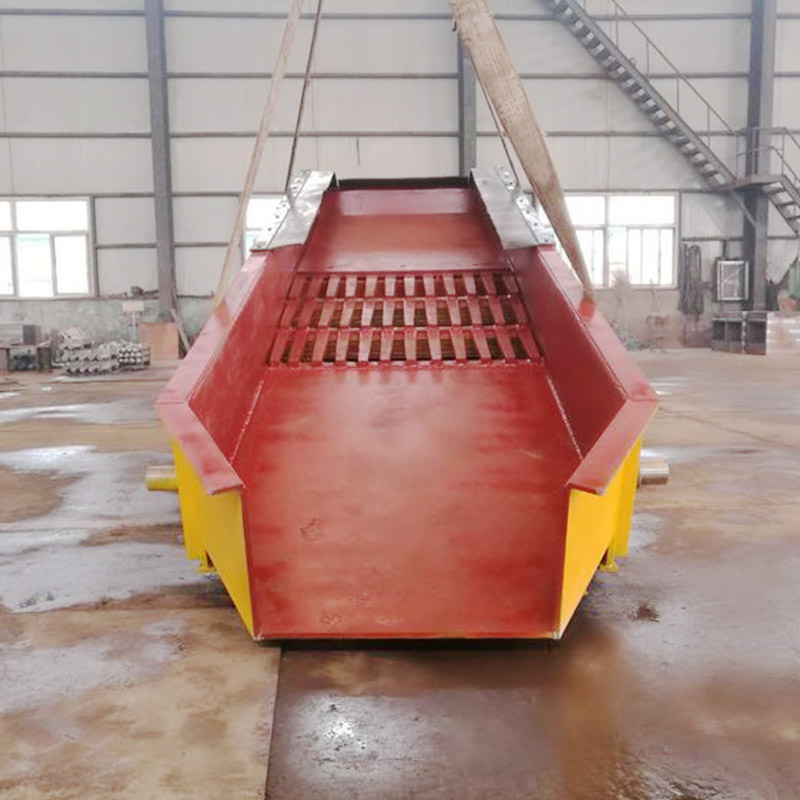

T-bar (blind) type vibrating feeder also called vibratory feeder, vibration feeder or mining feeder. it is our factory technical personnel on production for many years, on the basis of vibration feeding device, combined with the T series bar (blind) the practical application of vibrating feeder, developed by integrating the feeding, screening of new vibration feeding equipment, the advanced double-mass vibration feeding technology, Ingeniously applied in T series bar feeder, make the machine more stable performance, more stable operation, high efficiency and energy saving, and reduce the amount of maintenance, welcomed by users. It is the ideal equipment for metallurgical, mining, building materials and other industries.
●Compared with similar models, advanced technology, stable performance, stable operation.
●High efficiency and energy saving, double body vibration technology, energy saving more than 50%.
● The feed is stable and the feed quantity is easy to adjust.
● Low operating noise, protect the site environment.
●Small maintenance, long service life, good economic performance.
This machine is mainly used for uniform feeding of large materials before crushing process, heavy load, impact resistance, especially suitable for black, non-ferrous metal ore, construction stone and other medium hardness materials, before coarse crushing feeding. As a blind plate with an Angle is set in the material part, it can withstand a larger impact force, and the feeding surface of the discharge end is covered with adjustable gap bars, so at the same time of feeding, it can better separate the soil and finely broken materials out of the material, so that it gets the effect of half work with.
| Model | Working Area（m2） | Blind Plate Angle | Rod Angle | Double-Amplitude | （a）Angle of Vibration Direction | Maximum Particle Size | Processing Capacity | Vibrational Frequency | Motor Power | Weight | |
| Blind Plate | Rod | （a） | （a） | （mm） | （mm） | （t/h） | （n/min） | （kw） | （kg） | ||
| XZGT0720 | 0.7 | 0.7 | 0 | 15 | 12 | 35 | 400 | 300 | 960 | 1.5/2.2 | 4676 |
| XZGT0930 | 1.2 | 1.35 | 5 | 20 | 11 | 35 | 400 | 400 | 960 | 3.7 | 5400 |
| XZGT1230 | 1.8 | 1.8 | 5 | 20 | 9 | 35 | 700 | 750 | 960 | 5.5 | 6144 |
| XZGT1535 | 3 | 2.3 | 5 | 20 | 9 | 35 | 700 | 1300 | 960 | 7.5 | 7120 |
| XZGT1560 | 6 | 3 | 5 | 20 | 8 | 35 | 1000 | 1500 | 960 | 10 | 13260 |
