Super variable vibrating feeder is studied based on XZG double mass vibrating feeder , it is new development of large dip Angle lifting vibration feeder. The feed quantity can be adjusted by adjusting the Angle, and the level can be adjusted quantitatively or stepless. It is no longer affected by the moisture, particle size and adhesion of the material, and can meet the demand of feed quantity. Suitable for coal, metallurgy and other mining industry, large feeding capacity (4000 tons/hour), at the same time can realize the completion of automatic start and stop, suitable for unattended harsh working conditions.
Suitable for coal, metallurgy and other mining industry, large feeding capacity (4000 tons/hour), at the same time can realize the completion of automatic start and stop, suitable for unattended harsh working conditions.

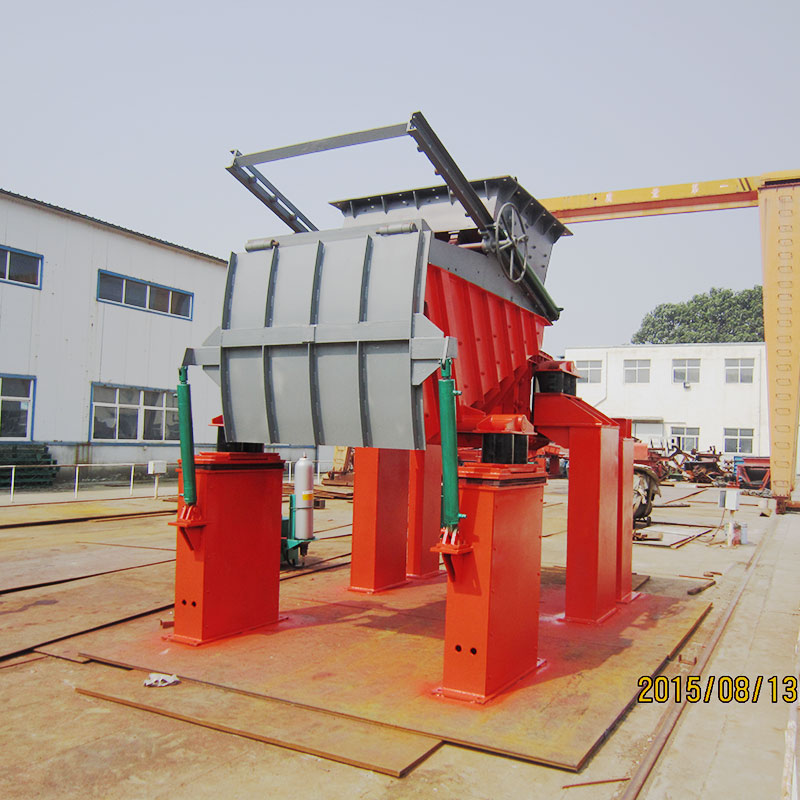

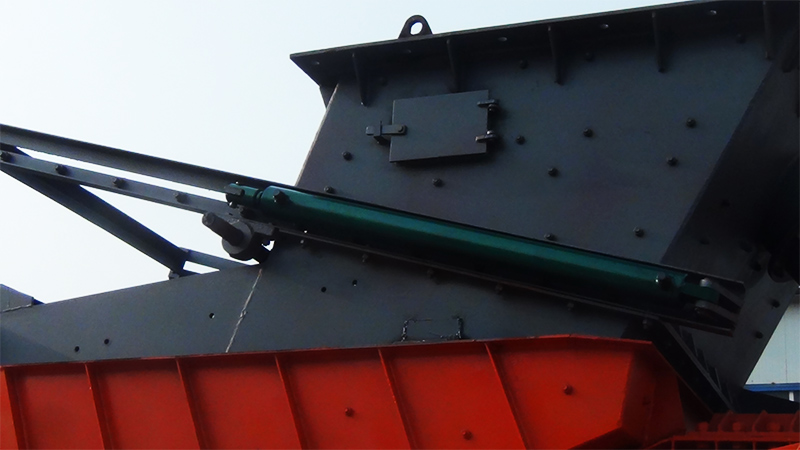

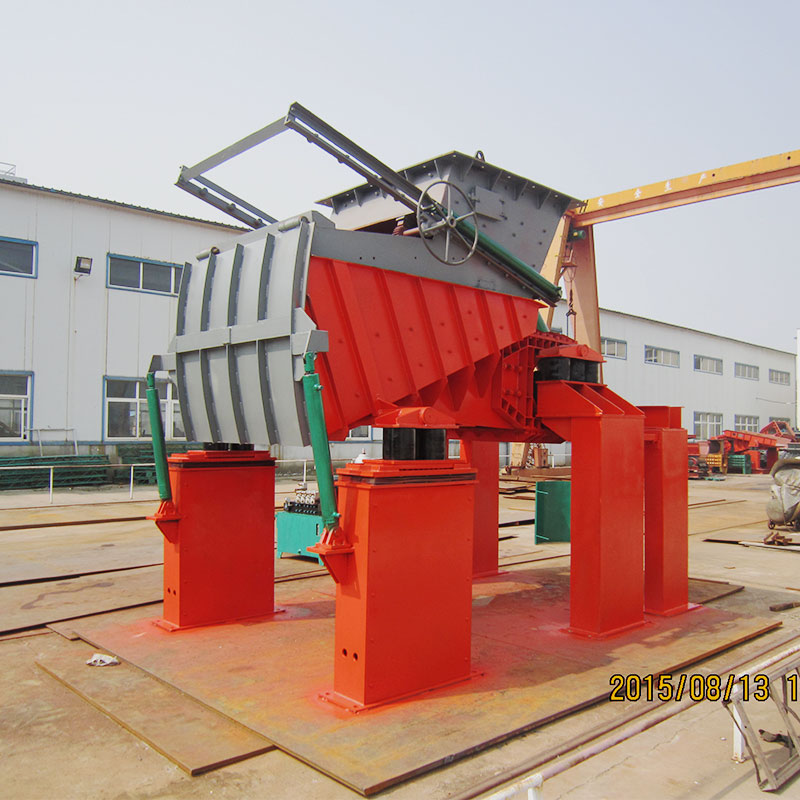

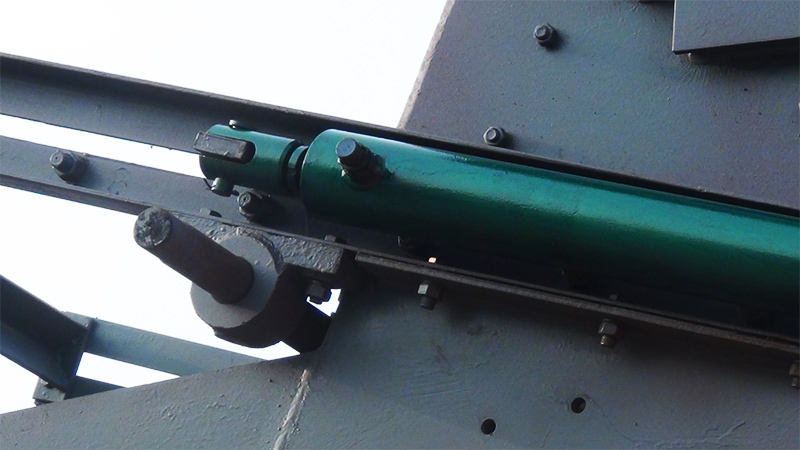

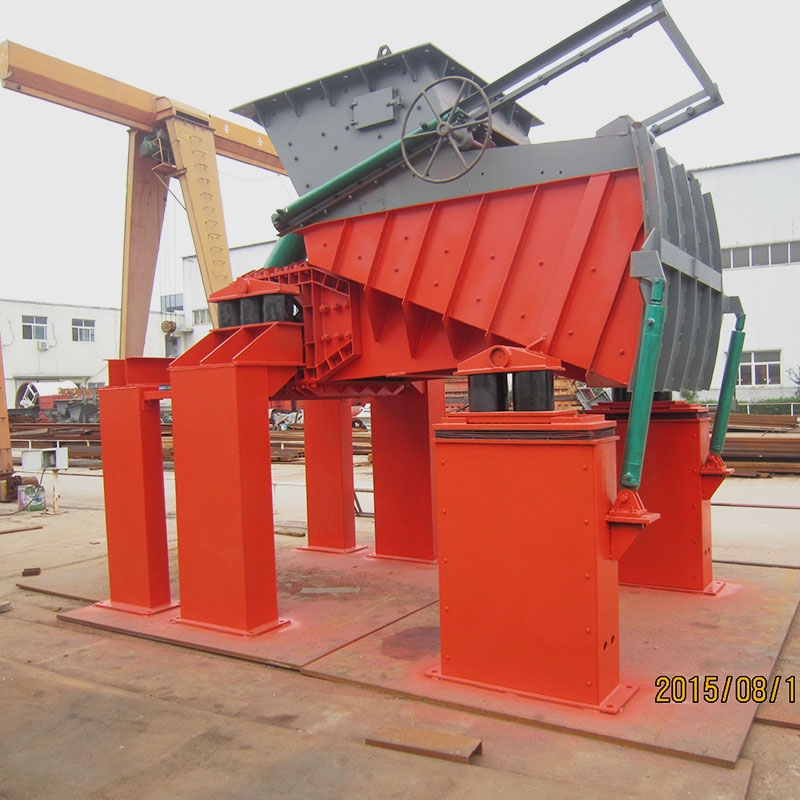

Hydraulic arch type super variable vibrating coal mine feeder is specially developed and designed for underground, tunnel, coal bunker large vibration feeding equipment, its emergence has changed the traditional vibration feeder, durable but small feed status quo. Obtained the National Invention patent certificate (Certificate No. 1308544 Patent No. : ZL2011 10425970.2). It is the combination of traditional vibration feeding equipment and modern intelligent control system, with large feed, small power, online automatic adjustment, fault alarm and automatic fault disposal products.

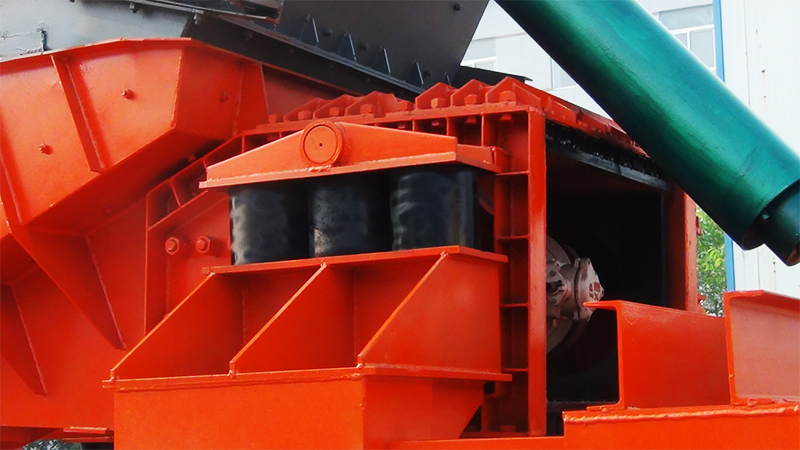

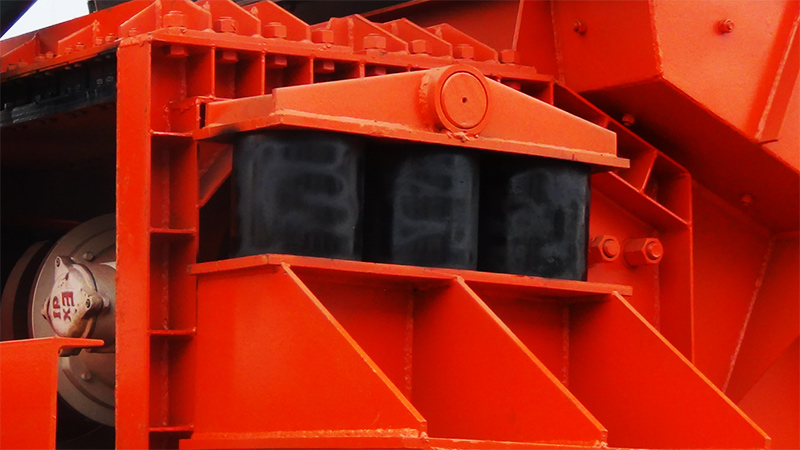

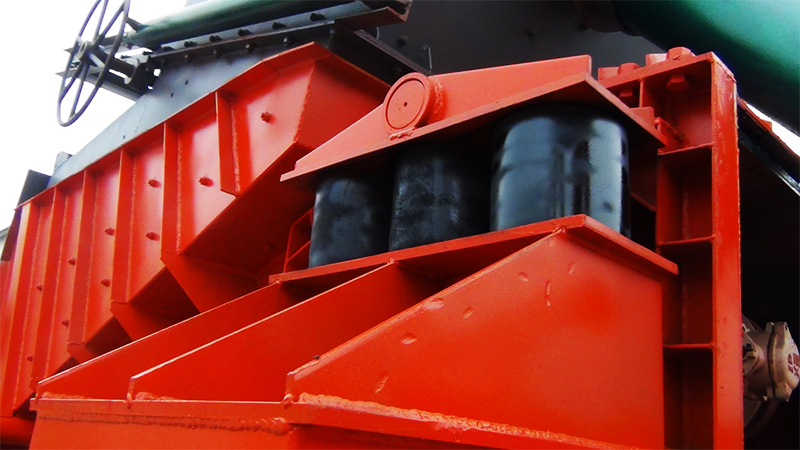

Double mass feeding technology: the vibration principle of the circular vibrating screen, so that the feeder is in the sub-resonance, elastic force, small power, large elastic force, large amplitude. The motor is always in the free balance body of rubber elastic operation, and the motor does not work directly on the tank. Starting is not affected by load, vibration motor through rubber shear spring indirect secondary elastic force tank. Soft force to prolong the life of the feeder. Can fully throw up the material, to achieve a large feed. Famous for non-burning motors. And can be frequently started. Motor burn out free within three years.
| Model | Figure Number | Groove Size （W×L×H）mm | Production Capacity（T/h） | Feeding Granularity(mm) | Vibrating Frequency(HZ) | Amplitude(mm) | Electric Current | Voltage | Power | External Dimension |
| （A） | (V) | (KW) | （W×L×H）mm | |||||||
| GLZⅠ240/1.5 | XZG6 | 900×1600×250 | 240 | ＜200 | 16 | 3.5 | 4.1/2.3 | 380/660 | 1.5 | 1092×2200×1640 |
| GLZⅠ350/2.2 | XZG7 | 1100×1800×250 | 350 | ＜250 | 16 | 3.5 | 5.7/3.3 | 380/660 | 2.2 | 1332×2400×1700 |
| GLZⅠ600/3.7 | XZG8 | 1300×2200×300 | 600 | ＜300 | 16 | 4 | 8.6/5 | 380/660 | 3.7 | 1556×2960×2100 |
| GLZⅠ800/5.5 | XZG9A | 1500×2400×300 | 800 | ＜350 | 16 | 4 | 12.5/7.2 | 380/660 | 5.5 | 1830×3500×2200 |
| GLZⅠ900/7.5 | XZG10A | 1800×2500×375 | 900 | ＜500 | 16 | 5 | 16.6/9.6 | 380/660 | 7.5 | 2500×3630×2400 |
| GLZⅠ1200/10 | XZG11A | 2000×2800×375 | 1200 | ＜500 | 16 | 5 | 20.5/11.9 | 380/660 | 10 | 2640×4030×2400 |
| GLZⅠ1000/5.5 | XZG9 | 1500×2400×300 | 1000 | ＜350 | 16 | 4 | 12.5/7.2 | 380/660 | 5.5 | 1830×3500×2200 |
| GLZⅠ1000/7.5 | XZG9B | 1500×2400×300 | 1000 | ＜350 | 16 | 4 | 16.6/9.6 | 380/660 | 7.5 | 1830×3500×2200 |
| GLZⅠ1300/7.5 | XZG10 | 1800×2500×375 | 1300 | ＜500 | 16 | 5 | 16.6/9.6 | 380/660 | 7.5 | 2500×3630×2400 |
| GLZⅠ1500/7.5 | XZG11 | 2000×2800×375 | 1500 | ＜500 | 16 | 5 | 16.6/9.6 | 380/660 | 7.5 | 2640×4030×2400 |
