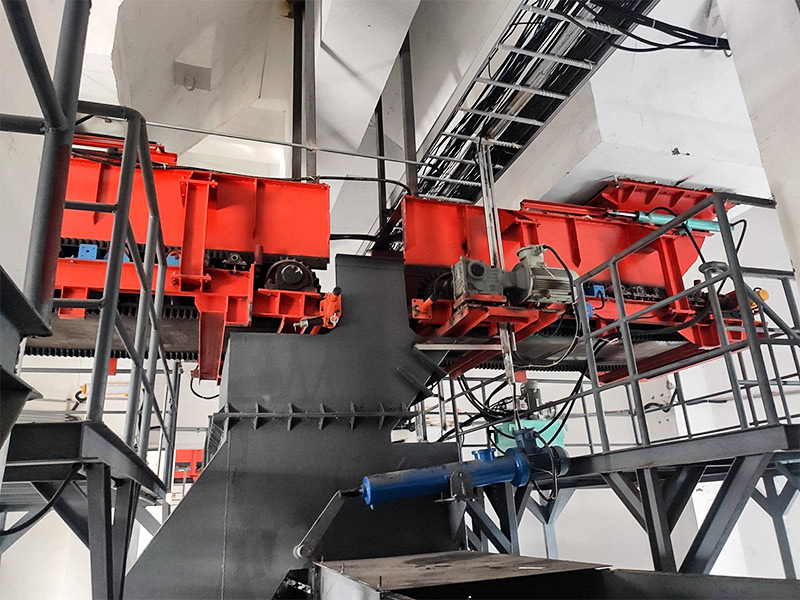

Super large weighting belt feeder is a set of belt feeder, electronic belt scale, frequency conversion electronic control as one of the feeding metering equipment, widely used in metallurgy, electric power, coking, chemical, building materials, wharf and other industries.

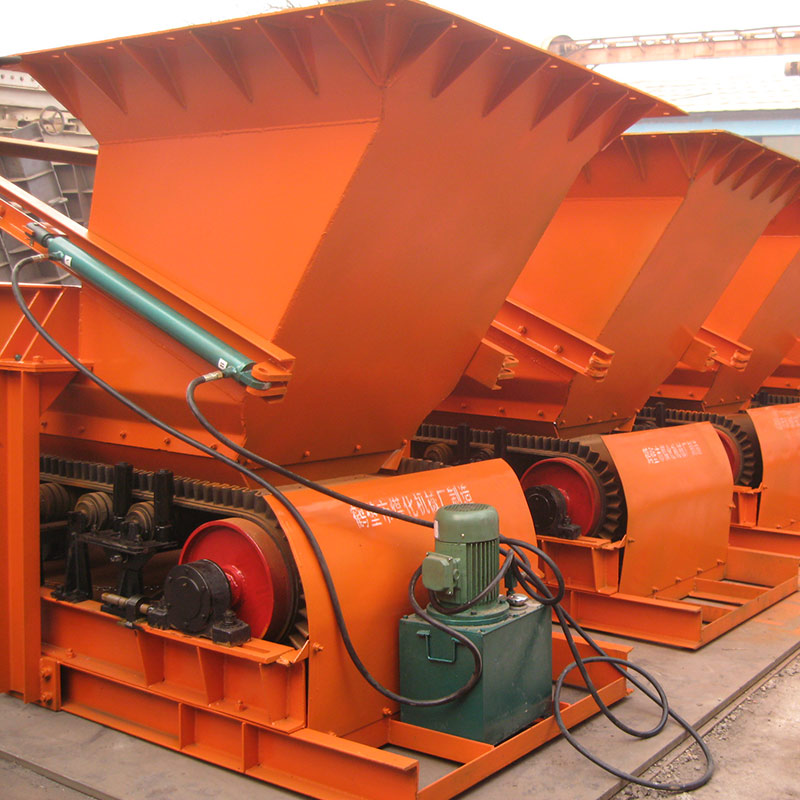

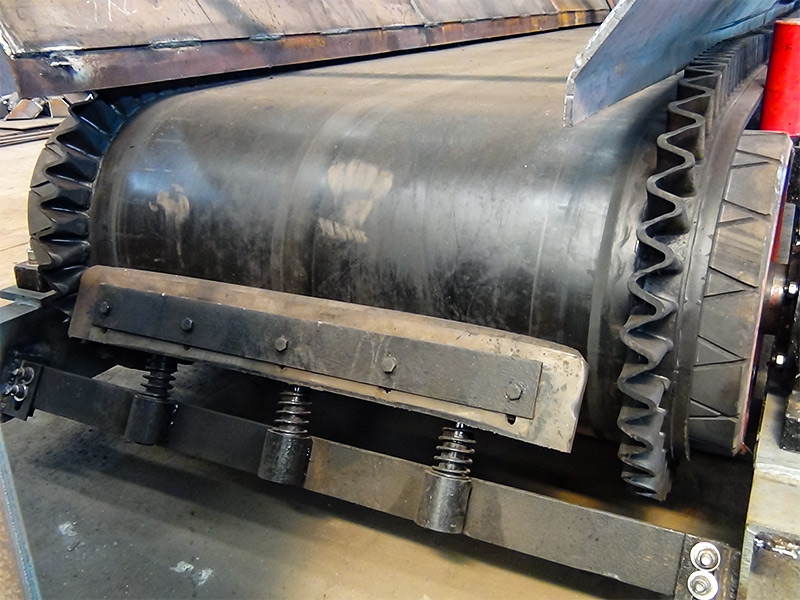

Super large weighting belt feeder, which is composed of funnel gate part, material conveying part and measuring part; The funnel gate part comprises a funnel, an electro-hydraulic gate and a feeding tank; The transmission drum and the reversing drum are respectively installed in the bottom frame of the discharging and feeding end, the output shaft of the transmission drum is connected with the driving device, a ring conveyor belt is arranged between the two drums, and the conveyor belt is supported by several groups of bearing rollers in the middle; The weighing roller of the measuring part is installed on the roller support, the lower part of the roller support is provided with a weighing sensor, and is provided with an adjusting bolt, the weight of the material through the steel ball on the upper part of the adjusting bolt on the sensor, the speed sensor is installed on the reversing drum; The utility model is especially suitable for the measurement and feeding of the production system with large feed amount in the intermediate transfer process of bulk materials in coal, metallurgy, mining, building materials, electric power and other industries, and has the characteristics of high measurement accuracy, large production capacity, rapid continuous and uniform feeding and so on.
● The weighing sensor adopts double-layer seal, with long life and good stability;

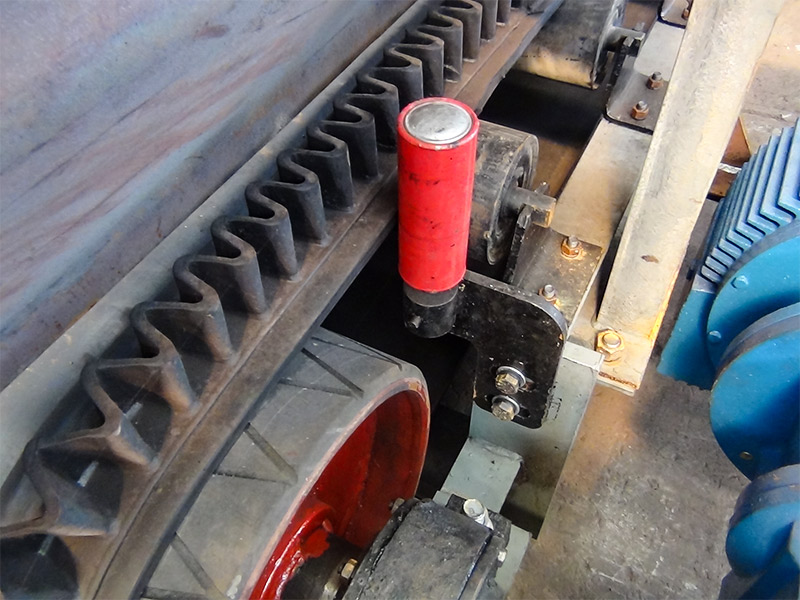

● Speed signal adopts photoelectric encoder, speed signal is accurate and reliable, strong anti-interference ability;
● Unique anti-deviation technology to ensure the normal operation of the belt;
● With automatic zero, automatic interval, automatic fault diagnosis function;
● Optional open loop or closed loop control, can realize the system of single loop intelligent control;
● All kinds of alarm devices can be selected, such as blocking material, broken material, belt deviation, etc., can timely understand the scene situation in the control room.
