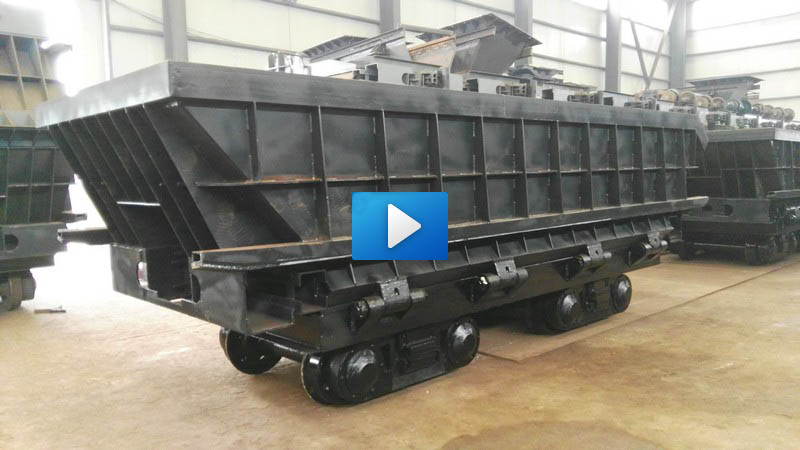

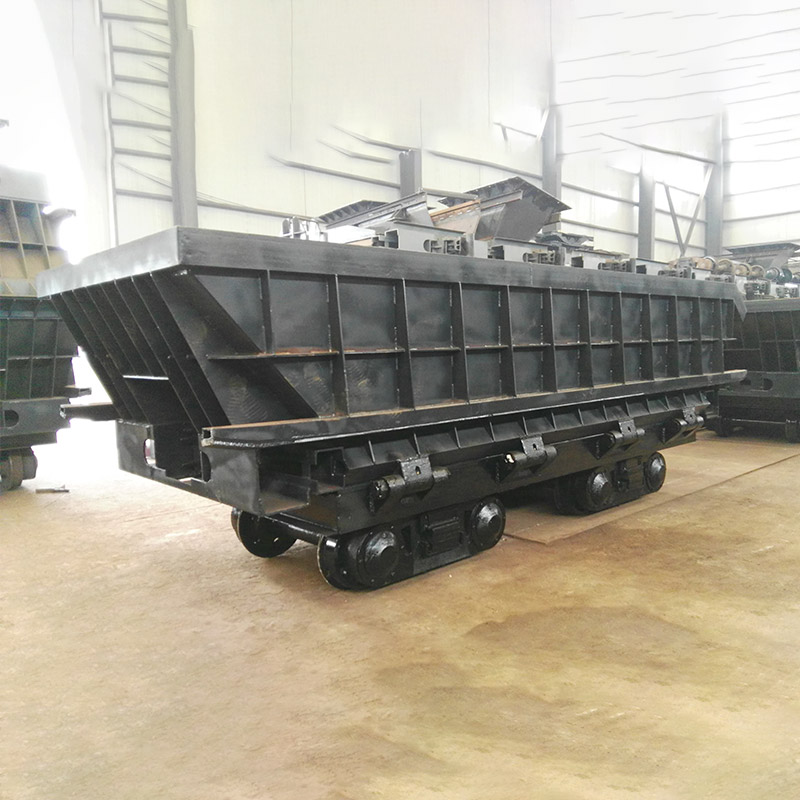

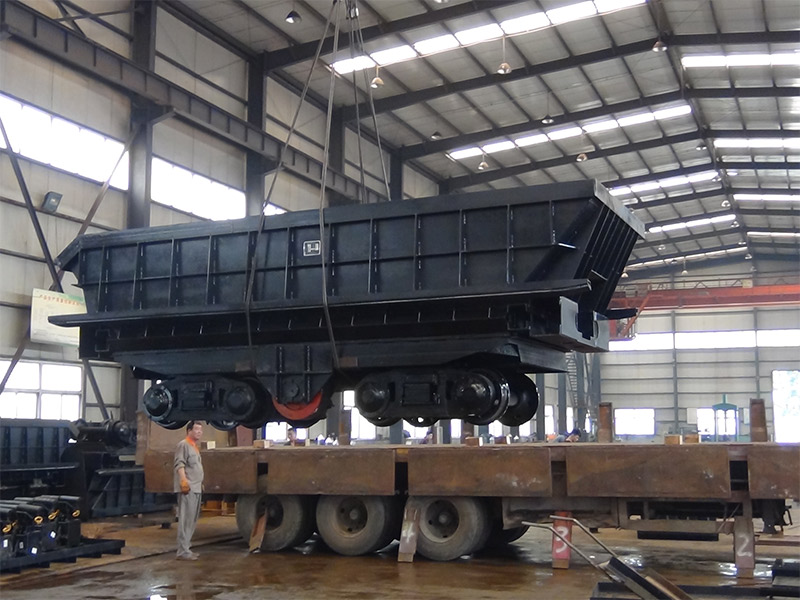

Single-side warp rail dumping mining wagon or mining cart,mining car is mainly used in metallurgy, mining, coal mine, railway, highway tunnel, underwater culvert, underground mine drift and military culvert and other engineering excavation, construction, supporting simple, high efficiency slag transport equipment.

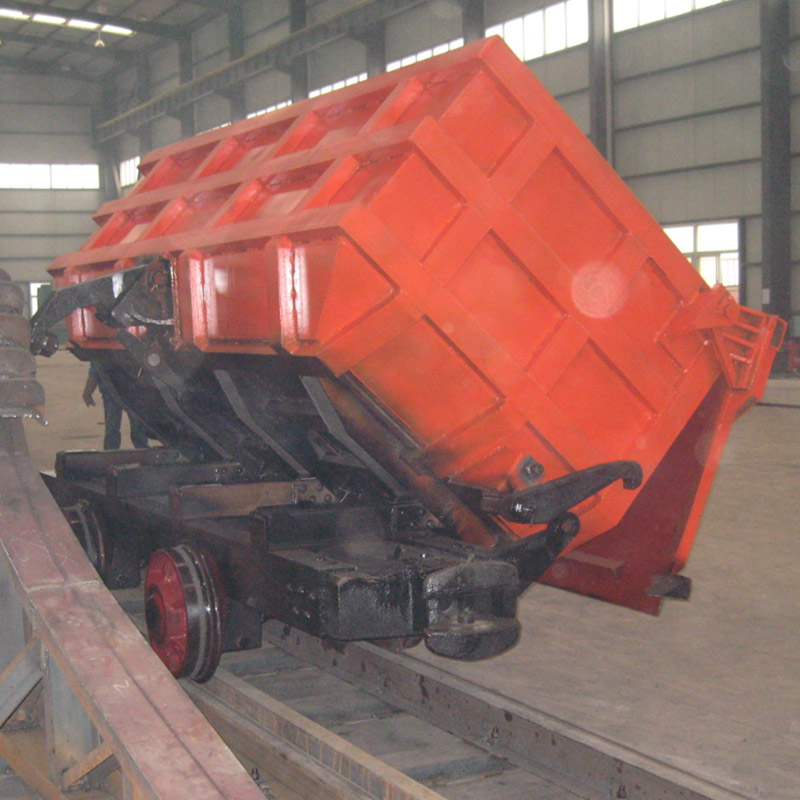

The side unloading type mine car is driven by tractor and winch, and can be combined with rock drill, vertical claw rock loader and ore slip gate feeding system. The ore lumpiness is not more than 600 mm. According to the load volume of the mine car, after loading, it is led by traction power (running speed is not more than 1m/ s) to special bend track unloader. When the trunk is turned horizontally to the maximum unloading Angle, the door is also opened to the maximum procedure. At this point the harvester has finished unloading. When returning, the car automatically closes in place through the curved track door.

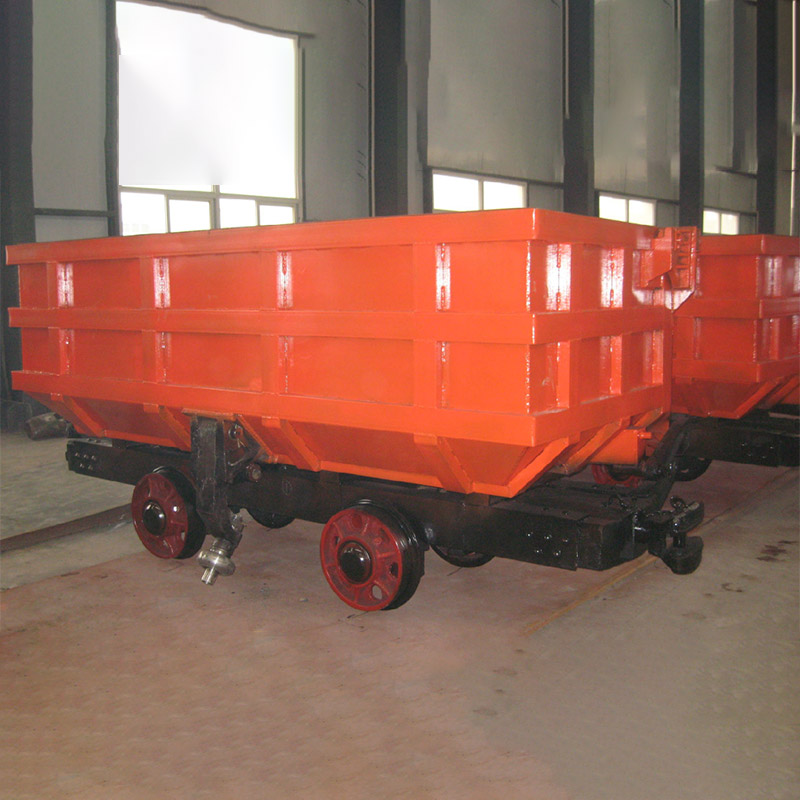

Side unloading type mine car is a kind of high efficiency, self-unloading operation equipment, itself has no ability, need to be used with traction locomotive. The car is suitable for tunnel, indoor and open-air rail transportation in mining, tunnel, engineering construction and other departments, the gauge is 600mm, 762mm, 900mm three, for users to choose. The car is suitable for loading rock and sand with lumpiness above 500mm. When loading massive materials, the free drop height should be less than 1m(from the top of the car box).
Product parameter：| Model | Volume | Load | Gauge | Overall Dimensions | Axle Distance | Wheel Diameter | Haule Height | Tractive Force | Unloading Angle | ||
| L | W | H | |||||||||
| m³ | T | mm | mm | mm | mm | mm | mm | mm | kg/f | ° | |
| YCC4-7 | 4 | 10 | 762 | 3900 | 1400 | 1650 | 1300 | 450 | 430 | 42 | |
| YCC4-9 | 900 | ||||||||||
| YCC6-7 | 6 | 15 | 762 | 5000 | 1600 | 1800 | 2500(1000) | 450 | 500 | 42 | |
