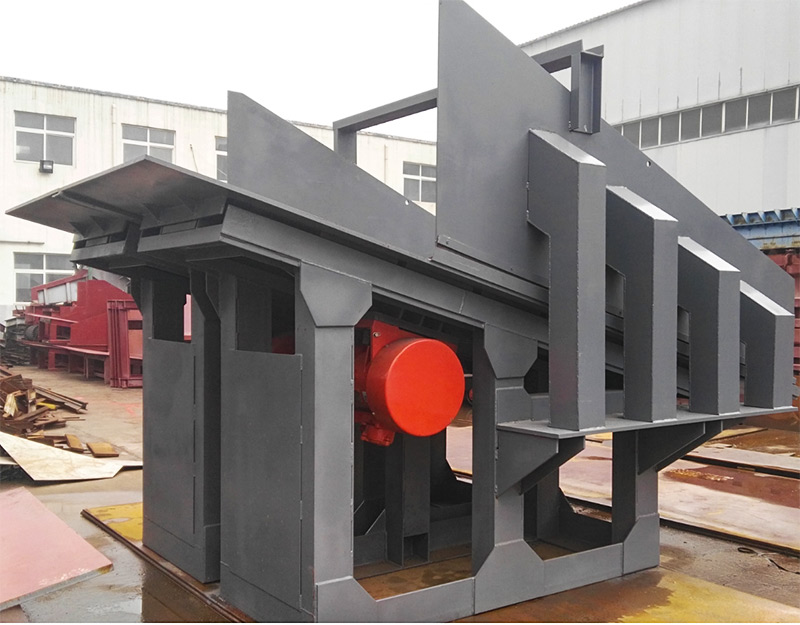

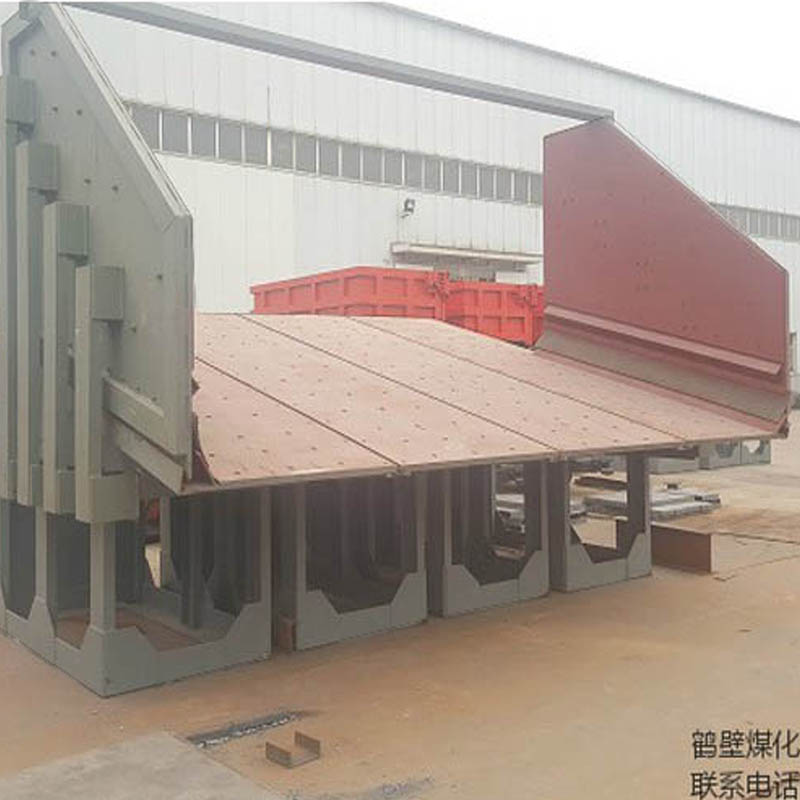

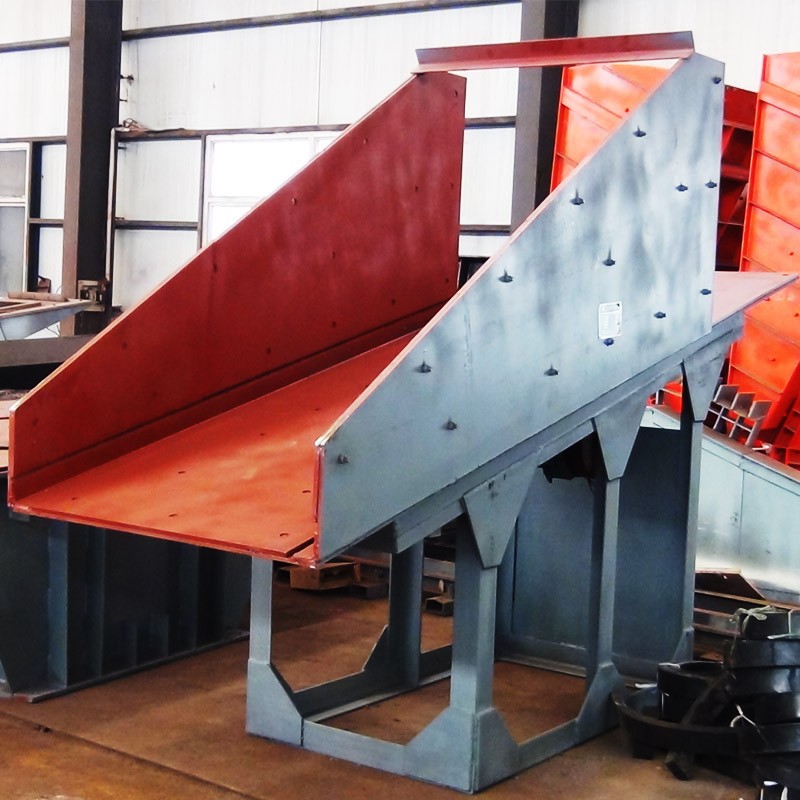

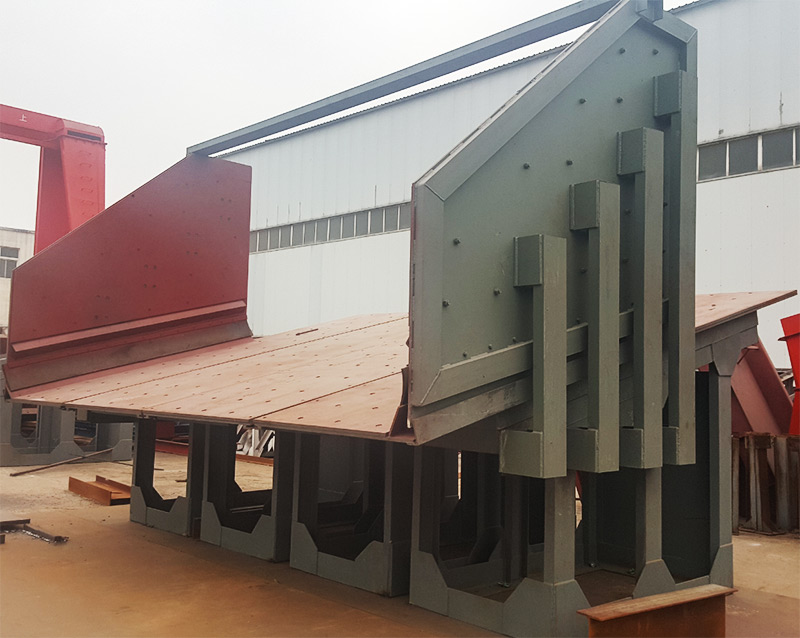

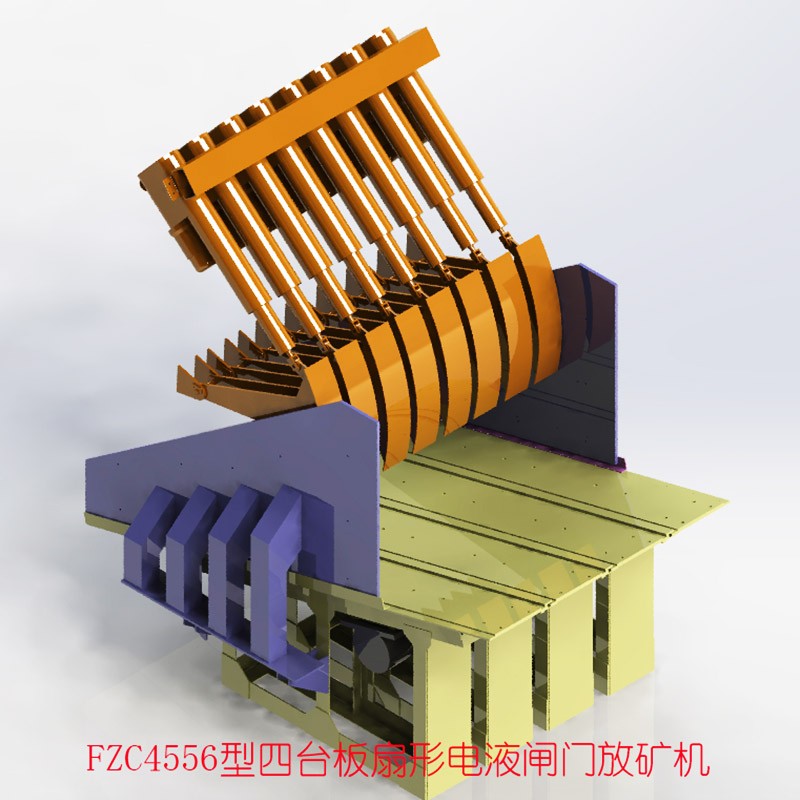

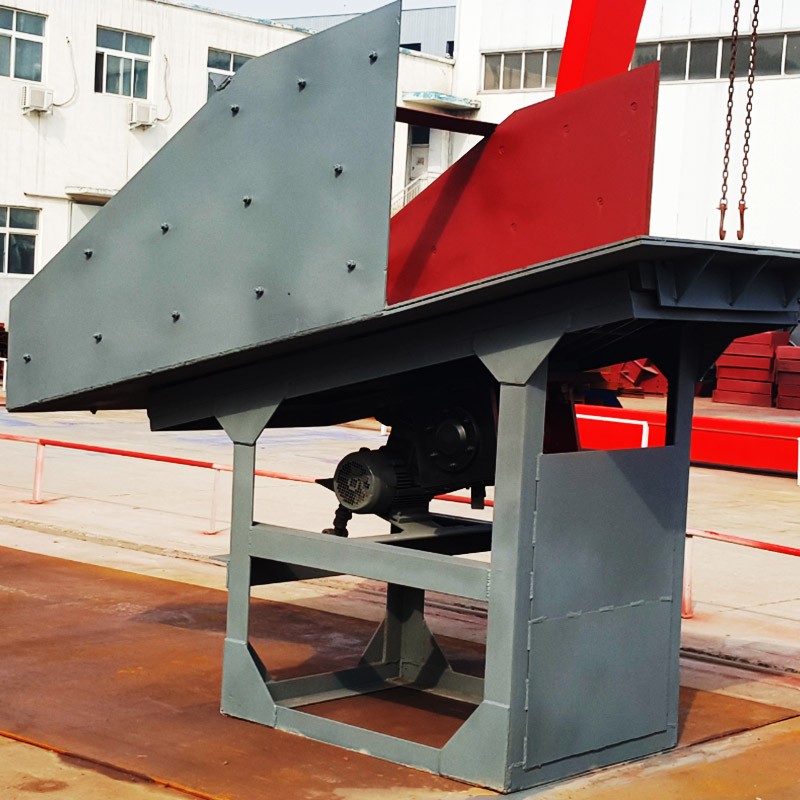

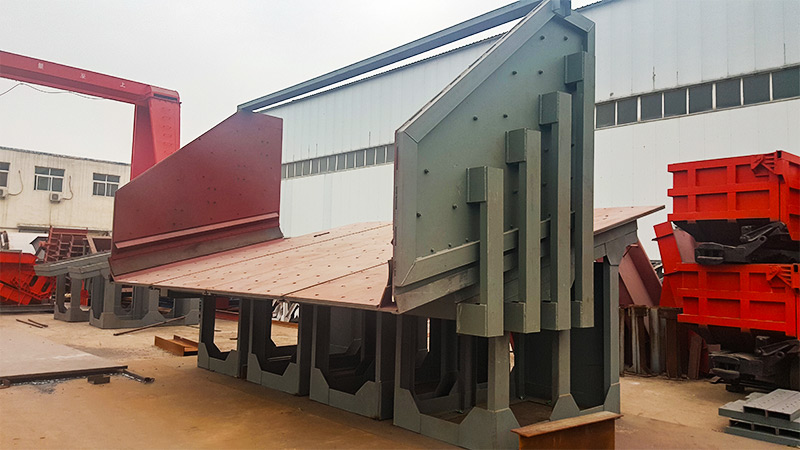

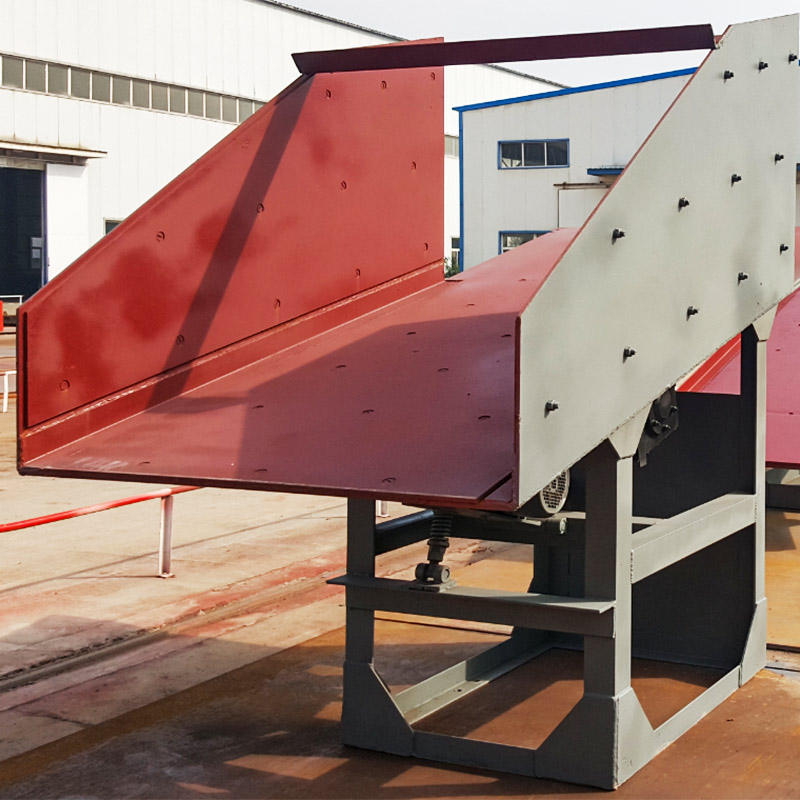

FZC ore drawing vibrating feeder is studied by our company on the basis of inertial vibrating ore drawing machine, combined the actual production conditions and metal ore characteristics developed a highly efficient energy saving, convenient and quick, wide application range, strong adaptability, reliable performance of a new type of side panel concluded not ore equipment. It is the ideal equipment for the release and loading of ore and other materials, and according to the needs of users, the site non-standard design of four plates, six plates and even eight plates parallel vibrating ore drawing equipment, improve the production efficiency, especially favored by the owners of metal mines.
| Model | Platform length (m) | Planfrom width(m) | Angle(a) | Frequency(n/min) | Amplitud(e) | Power (kw) | Production efficiency（T/H） | Dimensions |
| （mm） | LxBxH | |||||||
| FZC2.8/1×2-4×2 | 2.8 | 1×2 | 18 | 960 | 1.7 | 4×2 | 1160-1380 | 2663x2850x2200 |
| FZC2.8/1.4×2-5.5×2 | 2.8 | 1.4×2 | 14 | 960 | 1.8 | 5.5×2 | 1800-2100 | 2717x2650x2350 |
| FZC3.1/1×2-4×2 | 3.1 | 1×2 | 18 | 960 | 1.7 | 4×2 | 1100-1500 | 2948x2850x2200 |
| FZC3.1/1.2×2-5.5×2 | 3.1 | 1.2×2 | 14 | 960 | 1.8 | 5.5×2 | 1800-2100 | 3008x3350x2450 |
| FZC3.1/1.4×2-5.5×2 | 3.1 | 1.4×2 | 14 | 960 | 2 | 5.5×2 | 2120-2800 | 3008x3700x2670 |
| FZC3.5/0.9×2-4×2 | 3.5 | 0.9×2 | 18 | 960 | 1 | 4×2 | 1400-1600 | 3329x2650x2250 |
| FZC3.5/1×2-5.5×2 | 3.5 | 1×2 | 18 | 960 | 2 | 5.5×2 | 1900-2300 | 3329x2850x2650 |
| FZC3.5/1.2×2-7.5×2 | 3.5 | 1.2×2 | 14 | 960 | 1.8 | 7.5×2 | 1740-2100 | 3396x3150x2500 |
| FZC3.5/1.4×2-7.5×2 | 3.5 | 1.4×2 | 14 | 960 | 1.8 | 7.5×2 | 2320-2760 | 3396x3352x2700 |
| FZC4/1×2-7.5×2 | 4 | 1×2 | 16 | 960 | 1.8 | 7.5×2 | 1140-1740 | 3844x2850x2380 |
| FZC4/1.2×2-7.5×2 | 4 | 1.2×2 | 18 | 960 | 1.6 | 7.5×2 | 1740-2080 | 3804x3150x2480 |
| Fzc4.3/1.25×2-10×2 | 4.3 | 1.25×2 | 15 | 960 | 1.6 | 10×2 | 2000-2800 | 4153x3350x2900 |
| FZC4.5/1×2-7.5×2 | 4.5 | 1×2 | 18 | 960 | 1.8 | 7.5×2 | 1600-1900 | 4280x2850x3100 |
| FZC4.5/1.2×23-10×2 | 4.5 | 1.2×2 | 18 | 960 | 2 | 10×2 | 2380-3000 | 4280x3250x3100 |
| FZC5/1×2-10×2 | 5 | 1×2 | 18 | 960 | 1.6 | 10×2 | 1500-2000 | 4756x2850x3100 |
| FZC5/1.4×2-10×2 | 5 | 1.4×2 | 18 | 960 | 1.7 | 10×2 | 2600-3100 | 4755x3700x3050 |
| FZC5.5/1.2×2-11×2 | 5.5 | 1.2×2 | 18 | 960 | 1.8 | 11×2 | 2400-2800 | 5231x3250x3150 |
| FZC6/0.8×2-7.5×2 | 6 | 0.8×2 | 18 | 960 | 1.6 | 7.5×2 | 800-1300 | 5700x2350x4860 |
