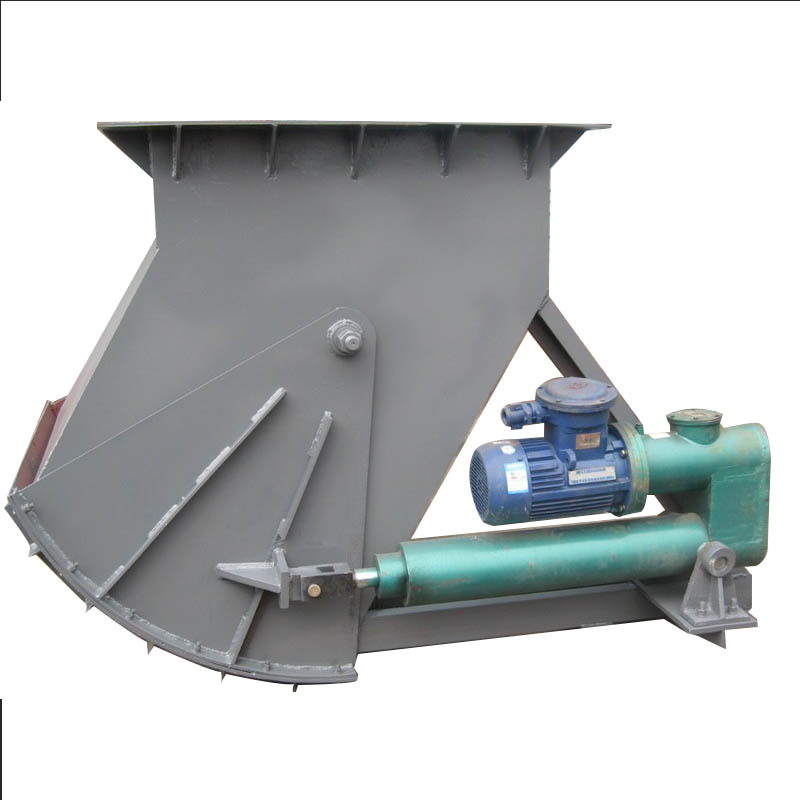

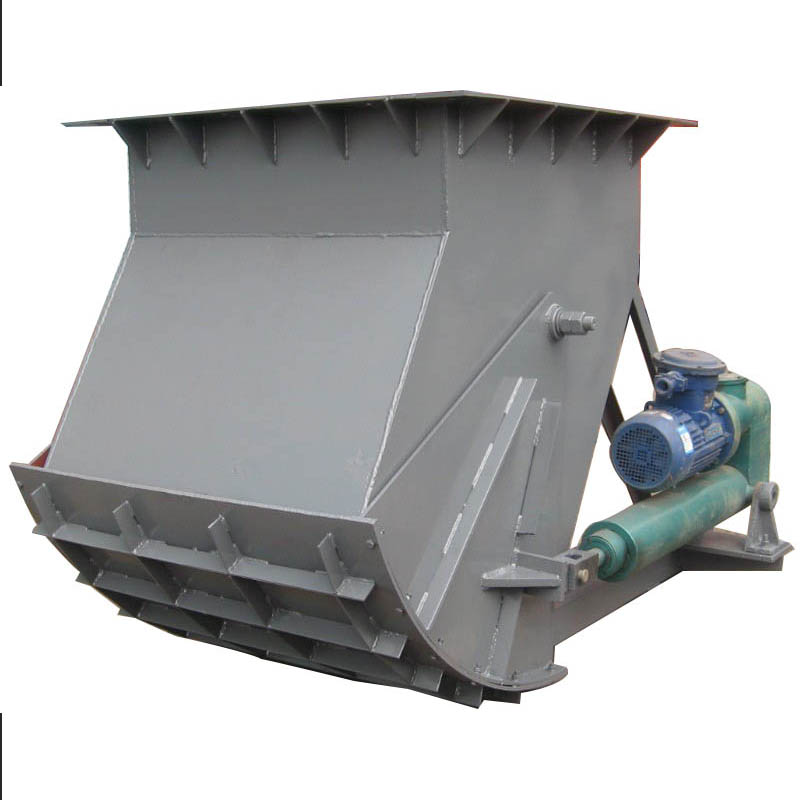

Electro-hydraulic fanshaped gate is widely used in mining, metallurgy, coal, building materials, electric power and other industries, the bulk materials such as block, particles from the storage bin or funnel, uniform and continuous to the conveyor belt, car and other materials in the device.
When there is a deviation between the position of the storage bin and the material receiving device, not in a vertical line, it shows the excellent performance of the equipment. The device is simple in mechanism, the use of electro-hydraulic push rod expansion to realize the automatic opening and closing of the gate, save time and effort, reduce the manual labor intensity. And the feeding process does not consume power, low noise, small maintenance and other advantages.
| Model | Dimensions（mm） | Push rod model | ||||||||
| A | B | C | D | F | J | L | Nxa | n-φ | ||
| DSZ-20 | 220 | 300 | 220 | 380 | 440 | 60 | 240 | 2×130 | 8-14 | XDGP750-220 |
| DSZ-30 | 300 | 400 | 320 | 552 | 540 | 340 | 2×180 | XDGP750-320 | ||
| DSZ-40 | 400 | 500 | 420 | 720 | 640 | 430 | 2×230 | XDGP750-420 | ||
| DSZ-50 | 500 | 630 | 530 | 890 | 750 | 80 | 530 | 3×190 | 23-18 | XDGP1000-520 |
| DSZ-60 | 600 | 730 | 630 | 1050 | 850 | 600 | 3×224 | XDGP1000-620 | ||
| DSZ-70 | 700 | 850 | 730 | 1200 | 950 | 90 | 660 | 3×259 | XDGP1000-720 | |
| DSZ-80 | 800 | 950 | 830 | 1355 | 1050 | 730 | 4×220 | 16-22 | XDGP1000-820 | |
| DSZ-90 | 900 | 1100 | 900 | 1500 | 1100 | 800 | 4×250 | XDGP1750-920 | ||
| DSZ-100 | 1000 | 1200 | 1000 | 1650 | 1200 | 100 | 860 | 4×275 | XDGP2500-1000 | |
| DSZ-120 | 1200 | 1500 | 1080 | 1800 | 1280 | 920 | 5×270 | 20-22 | XDGP2500-1100 | |
| DSZ-130 | 1300 | 1600 | 1180 | 2000 | 1380 | 1000 | 5×290 | XDGP3000-1200 | ||
